iCare EIDON UWF

200° ultra-widefield TrueColor confocal imaging with autofluorescence — the same optics, the same 14-megapixel sensor, the same one-button automation as a new unit. Factory-certified and rebuilt to specification at our North Carolina headquarters, then delivered and installed by our own team.

3
units available. These are the units iCare had; there is no second batch at this configuration. When they are claimed, the offer ends.
Get Refurbished Pricing → 📞 (919) 523-2590

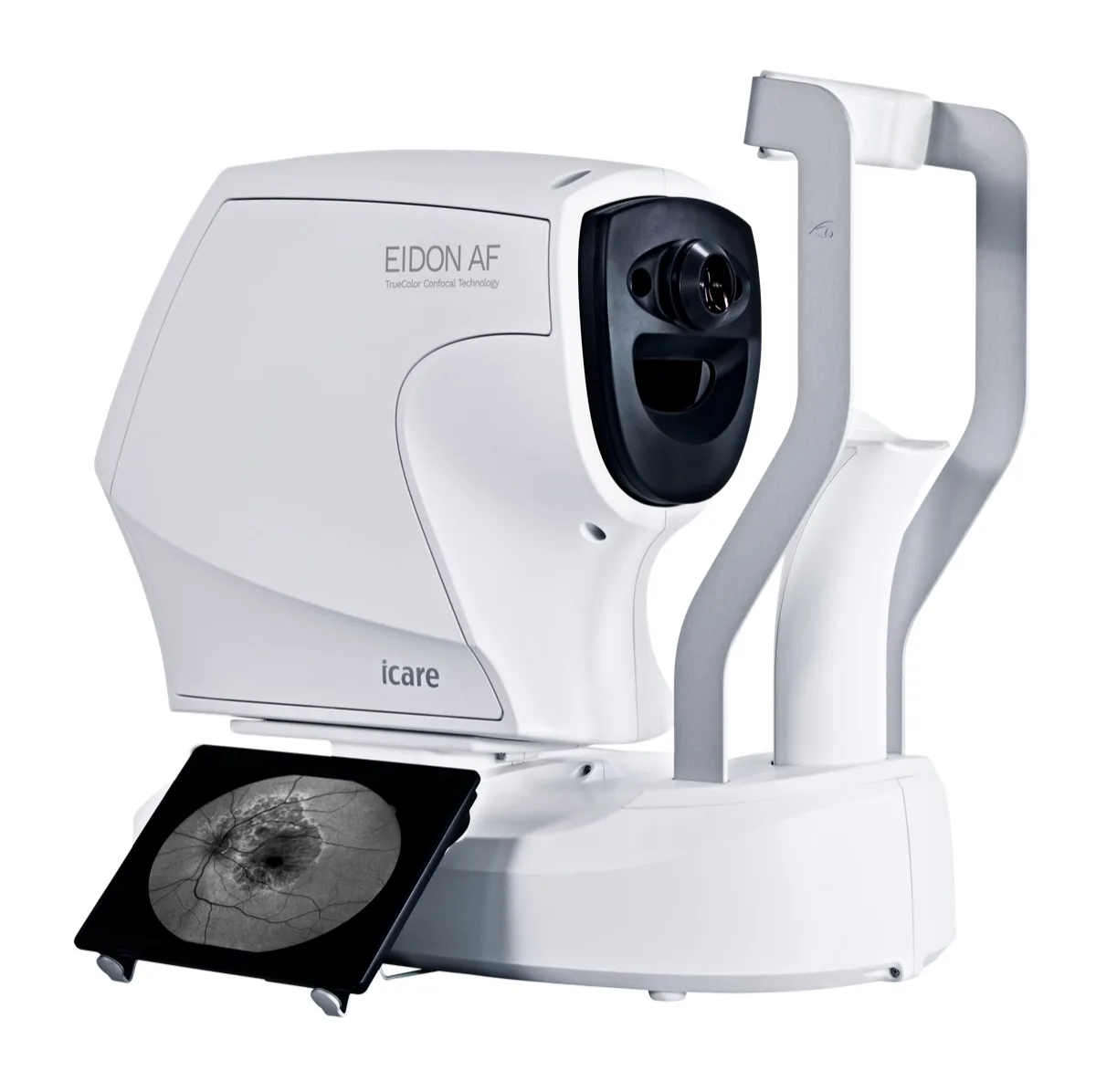

iCare EIDON AF TrueColor confocal retinal imaging system

iCare EIDON AF with UltraWide Field module

Why It Sells Itself

Three reasons this camera pays for itself

Everything below is standard on the unit — not an upgrade path, not a future software unlock.

01 — AUTOMATION

Any staff member can run it

Auto-alignment, auto-focus, auto-exposure, auto-capture and auto-mosaic. The tech seats the patient and presses one button; the EIDON finds the pupil, focuses across a −15D to +15D range and captures. No dilation down to a 2.5 mm pupil, so it drops into pretest instead of competing for doctor time.

02 — RESOLUTION

14 megapixels. 15 µm on the retina.

A 4608 × 3288 sensor at 60 pixels per degree, driven by a TrueColor confocal engine rather than a flash. Confocal rejects the scattered light that washes out a conventional fundus photo, so the image holds up through cataract, small pupils and media opacities — and it is genuinely diagnostic when you zoom in front of the patient.

03 — AUTOFLUORESCENCE

AF built in

Blue-light autofluorescence on the same platform, in the same sitting, with no second device and no second room. AF is where geographic atrophy, drusen and RPE change declare themselves early — and it is the modality that turns a routine widefield photo into a documented, defensible reason to bring the patient back.

200-degree TrueColor confocal SmartMosaic of a retina with diabetic retinopathy, captured non-mydriatically

200° in a single automated session. Macula to far periphery, undilated, in TrueColor — captured on the EIDON UWF. Peripheral pathology that a 45° camera never sees.

Clinical image courtesy of iCare / Revenio Group.

The Difference That Matters

Every unit is rebuilt before it ships

Factory-certified means the unit is held to the manufacturer’s own specification — not a reseller’s idea of good enough. Each EIDON is stripped down and rebuilt to that specification at our North Carolina headquarters and warehouse, by the same technicians who then install it in your office.

Rebuilt at our NC headquarters

Stripped, serviced and restored to the manufacturer’s current build specification by our own technicians in Raleigh.

Optically re-certified

Calibration verified against factory tolerances, so image quality matches a new unit rather than approximating it.

Covered by warranty

Every unit ships with a warranty. Ask us for the current term and coverage on these specific units.

Installed by us, locally

Delivery, setup, calibration check and hands-on staff training in your office — then same-day support from our team, not a call centre.

Warranty term, included accessories and software version are confirmed in writing on your quote before you commit.

Image Quality

Captured on the EIDON. Undilated.

TrueColor confocal image of diabetic retinopathy

Diabetic Retinopathy — TrueColor confocal

TrueColor confocal image of a glaucomatous optic nerve

Glaucomatous Optic Nerve — TrueColor confocal

TrueColor confocal image of a pigment epithelium detachment due to AMD

PED due to AMD — TrueColor confocal

Clinical images courtesy of iCare / Revenio Group. All captured non-mydriatic.

Specifications

Same specification as new
Technology
TrueColor confocal (SLO engine + white LED)
Sensor Resolution
14 megapixels (4608 × 3288 px) / 60 pixels/degree
Optical Resolution
15 µm on retina / 4.9 µm pixel pitch
FOV (standard single)
90° / up to 160° mosaic
FOV (with UWF Module)
120° single-shot / up to 200° mosaic
Light Sources
White LED (440–650 nm) / IR LED (825–870 nm) / Blue LED (440–475 nm, AF/FA models)
Min. Pupil Size
2.5 mm (non-mydriatic)
Auto-focusing Range
–15D to +15D
Working Distance
28 mm
Display
Tablet-operated multi-touch color display
Storage
SSD 480 GB (EIDON UWF/AF) / 2 TB (FA model)
Export Formats
JPEG, PDF, DICOM (optional)
Dimensions (W × H × D)
360 × 590 × 620 mm (14.2" × 23.2" × 24.4")
Weight
25 kg (55 lbs)
Power
100–240 VAC, 50–60 Hz, 80W / IEC 60601-1 Class I

Get pricing on a refurbished EIDON UWF

Tell us where to send it and Jim will come back with the refurbished price, the warranty term on these specific units, and how many are still unclaimed — the same business day.

Or call Jim directly at (919) 523-2590. No obligation, no pressure.

Full iCare EIDON UWF product page →
Compare EIDON UWF vs Optos vs CLARUS →
Retinal imaging platform comparison →

3 refurbished EIDON UWF units left Get Pricing →
